Hyper-V Topology by WMI Job

This section includes information about the trigger query and adapter for this job.

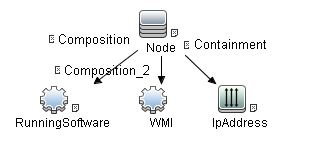

ClosedTrigger Query

Node Name Condition
RunningSoftware DiscoveredProductName Equal Microsoft Hyper-V Hypervisor
WMI NOT Reference to the credentials dictionary entry Is null
IpAddress NOT IP Probe Name Is null
ClosedAdapter

This job uses the hyperv_topology_by_wmi adapter.

  • Input Query

  • Triggered CI Data

    Name Value
    credentialsId ${SOURCE.credentials_id}
    ip_address ${SOURCE.application_ip}

  • Used Scripts

    • vendors.py
    • hyperv.py
    • hyperv_topology_by_wmi.py

  • Discovered CITs

    • Composition

    • ExecutionEnvinroment

    • Hyper-V Partition Config

    • Interface

    • Layer2Connection

    • Membership

    • Node

    • Switch

    • Virtualization Layer Software
