Link DB DataFiles and Clustered FS Job

This section includes details about the job.

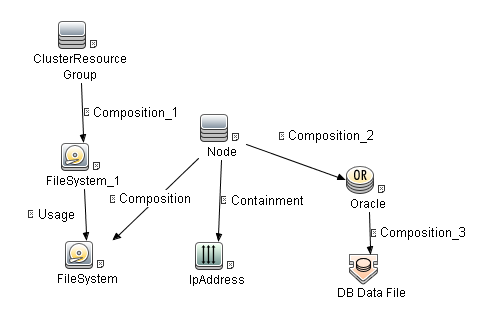

ClosedTrigger Query

ClosedDiscovery Flow

The approach for linking DB Data File and File System is as follows:

  1. The Service Guard Cluster Topology by TTY job reports File System Objects that are mount points of the Serviceguard package. So, these are File System package resources.
  2. The Oracle Topology by SQL job reports Oracle DB and DB Data Files.
  3. Where there is a topology in which ClusteredResource Groups has FS resources, and on at least one node of this cluster there is a running Oracle database with discovered DB Data Files, the Link DB DataFiles and Clustered FS job looks at all mount point and DB Data Files. The job finds valid relationships between them, if any, and reports each as a new link.
