Web Server Detection using TCP Ports Job
This section includes details about the job.
Introduction
This job discovers web servers using TCP ports.
Node Name | Condition |
---|---|
Node | None |
IpAddress | NOT IP Probe Name Is null |
IpServiceEndpoint |
IpServiceName Equal http OR ServiceNames Contains http |
Topology Map

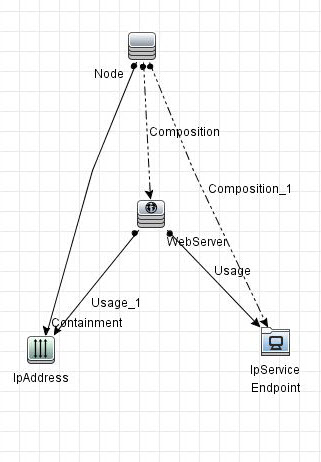

The Web Server Detection using TCP Ports topology is shown below.
Supported Policy
This job supports the following versions:
Vendor | Product | Supported Versions |
---|---|---|
IBM | IBM HTTP Server | 5, 6.1, 7, 8.0, 8.5, 8.5.5, 9.0 |
Apache | Apache HTTP Server | 1.3, 2.0, 2.2, 2.4 |
Microsoft | IIS | 5, 6, 7, 7.5, 8, 8.5, 10 |
Adapter Information
This job uses the TCP Web Server Detection adapter.
Jython
IpAddress
Name | Value |
---|---|
http_port | ${SERVICE_ADDRESS.network_port_number} |
ip_address | ${SOURCE.name} |
ip_domain | ${SOURCE.routing_domain} |
- Composition
- Containment
- IIS Web Server
- IpAddress
- IpServiceEndpoint
- Node
- RunningSoftware
- SunOne
- Usage
- WebServer
