MS NLB by NTCMD or UDA Adapter
This section contains details about the adapter.
NTCMD or UDA running on a Windows machine with at least two IP addresses:
Name | Value |
---|---|
credentialsId | ${SHELL.credentials_id} |
ip_address | ${IpAddress.name} |

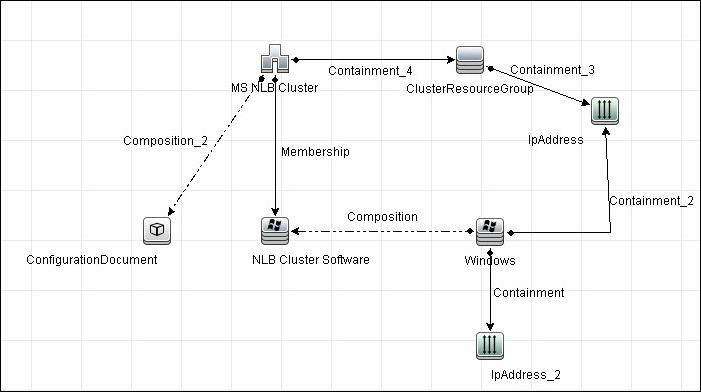

The CIT represents information regarding the NLB cluster.
-
CIT name: ms_nlb_cluster
-
Parent CIT name: loadbalancecluster
-
Start Node
Start Node Cardinality
Name
End Node
End Node Cardinality
ms_nlb_cluster
1..*
membership
nlb_clustersoftware
1..*
The Cluster IP address is a key field, as this is the most reliable way of discovering NLB. By comparison, discovering NLB through the Cluster network address is less reliable as it is dependent on the IP address and the operating mode—Unicast, Multicast, or IGMP. The Cluster domain name is retrieved for the Cluster name.
-
The following attributes are specific to the MS NLB Cluster CIT:
Key
Display Name
Attribute Name
Type
X
ClusterIPAddress
cluster_ip_address
String(15)
ClusterNetworkMask
cluster_network_mask
String(15)
McastIPAddress
mcast_ip_address
String(15)
ClusterDomainName
cluster_domain_name
String(256)
ClusterNetworkAddress
cluster_network_address
MAC Address
IPToMACEnable
ip_to_mac_enable
Boolean
MulticastSupportEnable
multicast_support_enable
Boolean
IGMPSupport
igmp_support
Boolean
RemoteControlEnabled
remote_control_enabled
Boolean
X
Name
name
String (modified for this CIT)
The CIT represents information regarding a single machine configuration that is part of an NLB cluster.
- CIT name: nlb_clustersoftware
- Parent CIT name: failoverclustersoftware
-
Start Node
Start Node Cardinality
Name
End Node
End Node Cardinality
ms_nlb_cluster
1..*
membership
nlb_clustersoftware
1..*
nt
1..*
composition
nlb_clustersoftware
1..*
-
Key
Display Name
Type
ClusterIPAddress
String(15)
HostPriority
int (1-32)
ClusterModeOnStart
Started, Suspended, Stopped
Name
String (NLB Cluster SW)
Composition
String (32)
This CIT retrieves information about each port rule defined for NLB clusters.
Since the Port Rule entity cannot clearly define key attributes, the port rules properties are stored in the properties file (key=value pairs) as follows:
portRule1.ServingIP=All portRule1.StartPort=0 portRule1.EndPort=100 portRule1.Protocol=Both portRule1.FilteringMode=Multiple portRule1.Affinity=Single portRule1.LoadWeight=40
Start Node |
Start Node Cardinality |
Name |
End Node |
End Node Cardinality |
---|---|---|---|---|
nt |
1..* |
composition |
nlb_clustersoftware |
1..* |
ms_nlb_cluster |
1..* |
membership |
nlb_clustersoftware |
1..* |
