Inheritance diagram for Azure Virtual Network Gateway
| Display Name | Azure Virtual Network Gateway |
|---|---|
| Name | azure_virtual_network_gateway |
| Description | [Summary] A VPN gateway is a specific type of virtual network gateway that is used to send encrypted traffic between an Azure virtual network and an on-premises location over the public Internet. Each virtual network can have only one VPN gateway. [Collection - Azure] To get Azure Virtual Network Gateway use List By Resource Groupe Rest API Ref: https://docs.microsoft.com/en-us/rest/api/network-gateway/virtualnetworkgateways/list GET https://management.azure.com/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}/providers/Microsoft.Network/virtualNetworkGateways?api-version=2020-11-01 |
| Attributes defined for Azure Virtual Network Gateway | |||||||
|---|---|---|---|---|---|---|---|
| Name | Display Name | Type | Default Value | Description | Factory | Key | Hidden |
| active_active | Active Active | boolean | [Summary] ActiveActive flag. [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][activeActive] | true | false | false | |
| asn | Asn | integer | [Summary] The BGP speaker's ASN. [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][bgpSettings][asn] | true | false | false | |
| custom_bgp_peering_address | Custom BGP Peering Address | string[200] | [Summary] A list of pairs, the first being the default BGP peering address and the second the custom BGP peering address (This is available only when activeActive is enable and BGP is configured) [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][bgpSettings][customBgpIpAddresses] | true | false | false | |
| default_bgp_peering_address | Default BGP Peering Address | string[150] | [Summary] The list of default BGP peering addresses which belong to IP configuration. NOTE: This property will not be serialized. It can only be populated by the server. [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][bgpSettings][bgpPeeringAddress] | true | false | false | |
| disable_ip_sec | Disable IP Sec Replay Protection | boolean | [Summary] Disable IP Sec Replay Protection flag [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][disableIPSecReplayProtection] | true | false | false | |
| enable_bgp | Enable BGP | boolean | [Summary] Whether BGP is enabled for this virtual network gateway or not. [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][enableBgp] | true | false | false | |
| enable_bgp_route | Enable BGP Route Translation For Nat | boolean | [Summary] Enable BGP Route Translation For Nat flag. [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][enableBgpRouteTranslationForNat] | true | false | false | |
| enable_dns_forwarding | Enable DNS Forwarding | boolean | [Summary] Whether dns forwarding is enabled or not. [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][enableDnsForwarding] | true | false | false | |
| enable_private_ip_address | Enable Private IP Address | boolean | [Summary] Whether private IP needs to be enabled on this gateway for connections or not. [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][enablePrivateIpAddress] | true | false | false | |
| etag | Etag | string[50] | [Summary] A unique read-only string that changes whenever the resource is updated. [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][etag] | true | false | false | |
| gateway_type | Gateway Type | string[50] | [Summary] The type of this virtual network gateway. [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][gatewayType] | true | false | false | |
| inbound_dns_forwarding | inbound DNS Forwarding Endpoint | string[20] | [Summary] The IP address allocated by the gateway to which dns requests can be sent. [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][inboundDnsForwardingEndpoint] | true | false | false | |
| peer_weight | Peer Weight | integer | [Summary] The weight added to routes learned from this BGP speaker. [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][bgpSettings][peerWeight] | true | false | false | |
| provisioning_state | Provisioning State | string[10] | [Summary] The provisioning state of the virtual network gateway resource. [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][provisioningState] | true | false | false | |
| resource_guid | Resource Guid | string[50] | [Summary] The resource GUID property of the virtual network gateway resource. [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][resourceGuid] | true | false | false | |
| sku_capacity | Sku Capacity | integer | [Summary] The capacity. [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][sku][capacity] | true | false | false | |
| sku_name | Sku Name | string[50] | [Summary] Gateway SKU name. [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][sku][name] | true | false | false | |
| sku_tier | Sku Tier | string[50] | [Summary] Gateway SKU tier. [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][sku][tier] | true | false | false | |
| vpn_gateway_generation | Vpn Gateway Generation | string[50] | [Summary] The generation for this VirtualNetworkGateway. [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][vpnGatewayGeneration] | true | false | false | |
| vpn_type | Vpn Type | string[50] | [Summary] The type of this virtual network gateway. [Collection - Azure] Get the value from the field: GATEWAY_JSON[properties][vpnType] | true | false | false | |
| Attributes defined for Azure Resource | |||||||
| Name | Display Name | Type | Default Value | Description | Factory | Key | Hidden |
| azure_resource_id | Azure Resource Id | string[500] | Azure Resource Id | true | false | false | |
| Attributes defined for Application Resource | |||||||
| Name | Display Name | Type | Default Value | Description | Factory | Key | Hidden |
| applicationresource_type | Application Resource Type | string[100] | Application Resource Type | true | false | false | |
| BODY_ICON | string | general | true | false | true | ||
| FAMILY_ICON | string | hostresource | true | false | true | ||
| layer | layer_enum | software | true | false | false | ||
| resource_path | Resource Path | string[512] | Resource Path | true | false | false | |
| Attributes defined for InfrastructureElement | |||||||
| Name | Display Name | Type | Default Value | Description | Factory | Key | Hidden |
| BODY_ICON | string | system | true | false | true | ||
| codepage | CodePage | string[50] | System suported CodePage | true | false | true | |
| credentials_id | Reference to the credentials dictionary entry | string | Reference to the credentials dictinary entry | true | false | true | |
| language | Language | string[50] | System suported language | true | false | true | |
| zone_list | Zone List | string_list[256] | List of management zones in which the CI is discovered | true | false | false | |
| Attributes defined for ConfigurationItem | |||||||
| Name | Display Name | Type | Default Value | Description | Factory | Key | Hidden |
| ack_cleared_time | long | true | false | true | |||
| ack_id | string[80] | true | false | true | |||
| bit_position | Bit Position | integer | true | false | true | ||
| bitmap_id | Bitmap ID | integer | true | false | true | ||
| BODY_ICON | string | it_world | true | false | true | ||
| string[50] | City location | true | false | true | |||
| classification | classification_enum | true | false | false | |||
| contextmenu | Context Menu | string_list[100] | Context menu | true | false | true | |
| string[50] | Country or province location | true | false | true | |||
| data_tags | Tags | json[4000] | A tag is a label assigned to a resource.Each tag consists of a key and a value. | true | false | false | |
| discovery_state | Discovery State | discovery_state_enum | State of UD discovery | true | false | false | |
| is_save_persistency | Store KPI History For Over Time Reports | boolean | false | Store KPI history for over time reports | true | false | true |
| layer | layer_enum | true | false | false | |||
| metaphase | Meta Phase | string[50] | Meta Phase of a CI in SMAX. The attribute is owned by SMAX exclusively | true | false | false | |
| monitor_state | Monitor State | string[50] | Monitor State of a CI in OpsB. The attribute is owned by OpsB exclusively. | true | false | false | |
| provision_state | Provision State | string[50] | Provision State of a CI in HCMX. The attribute is owned by HCMX exclusively. | true | false | false | |
| sd_type | SD Type | string[32] | true | false | false | ||
| string[50] | State location | true | false | true | |||
| track_changes | Track Configuration Changes | boolean | false | Track configuration changes | true | false | true |
| Attributes defined for Managed Object | |||||||
| Name | Display Name | Type | Default Value | Description | Factory | Key | Hidden |
| TenantOwner | Owner Tenant | string[32] | The Tenant Owner ID | true | false | false | |
| TenantsUses | Consumer Tenants | string_list | The IDs of the Tenants who are associated with the CI | true | false | false | |
| Attributes defined for Object | |||||||
| Name | Display Name | Type | Default Value | Description | Factory | Key | Hidden |
| document_list | Documents | string | Documents | true | false | true | |
| MENU | xml | true | false | true | |||
| Attributes defined for Data | |||||||
| Name | Display Name | Type | Default Value | Description | Factory | Key | Hidden |
| adminstates_enum | 0 | Admin State | true | false | true | ||
| data_allow_auto_discovery | Allow CI Update | boolean[250] | true | true | false | false | |
| changestates_enum | 0 | Change State | true | false | true | ||
| boolean | false | Change State | true | false | true | ||
| changestates_enum | 0 | Change State | true | false | true | ||
| data_externalid | External ID | string[300] | external source id: snmp index, data sources index etc. | true | false | true | |
| data_note | Note | string[250] | true | false | false | ||
| operationstates_enum | 0 | Operation State | true | false | true | ||
| boolean | false | Operation State | true | false | true | ||
| operationstates_enum | 0 | Operation State | true | false | true | ||
| data_origin | Origin | string[100] | true | false | false | ||
| data_source | Created By | string[512] | true | false | false | ||
| teststates_enum | 0 | Test State | true | false | true | ||
| boolean | false | Test State | true | false | true | ||
| teststates_enum | 0 | Test State | true | false | true | ||
| data_updated_by | LastModifiedBy | string[512] | true | false | false | ||
| description | Description | string[1000] | Description | true | false | false | |
| digest | Digest | string[40] | true | false | true | ||
| display_label | Display Label | string[900] | Used as calc attribute for display | true | false | false | |
| MENU | xml | true | false | true | |||
| name | Name | string[900] | true | false | false | ||
| user_label | User Label | string[900] | Used as user label | true | false | false | |
| Attributes defined for Root | |||||||
| Name | Display Name | Type | Default Value | Description | Factory | Key | Hidden |
| BODY_ICON | string | general | true | false | true | ||
| calculated_id | Calculated ID | bytes[16] | Calculated ID | true | false | true | |
| create_time | Created Time | date | When was this CI created | true | false | false | |
| FAMILY_ICON | string | true | false | true | |||
| global_id | Global Id | string[32] | A globally unique identifier for the entity represented by the object | true | false | false | |
| global_id_scope | string | Default | true | false | true | ||
| last_discovered_by | LastDiscoveredBy | string[512] | Who discovered this CI | true | false | false | |
| last_discovered_by_probe | LastDiscoveredByProbe | string | Which probe discovered this CI | true | false | false | |
| last_discovered_time | LastDiscoveredTime | date | When was this CI discovered | true | false | false | |
| last_modified_time | LastModifiedTime | date | When was this CI last updated | true | false | false | |
| root_actualdeletetime | Actual Delete Time | date | When will this CI be deleted | true | false | true | |
| root_actualdeletionperiod | Actual Deletion Period | integer | 40 | What is the period after the CI will be deleted | true | false | false |
| root_candidatefordeletetime | Candidate For Deletion Time | date | When will this CI be warned about deleting | true | false | true | |
| root_class | CI Type | string[100] | Class name of the CI | true | false | true | |
| root_container | Container | string[32] | Container CI of this CI | true | false | false | |
| root_deletioncandidateperiod | Deletion Candidate Period | integer | 20 | What is the period after the CI will be candidate for delete | true | false | false |
| root_enableageing | Enable Aging | boolean | false | Is aging enabled | true | false | false |
| root_iconproperties | string[100] | true | false | true | |||
| root_iscandidatefordeletion | Is Candidate For Deletion | boolean | false | Is candidate for deletion | true | false | false |
| root_lastaccesstime | Last Access Time | date | When was this CI last accessed | true | false | false | |
| string[2] | true | false | true | ||||

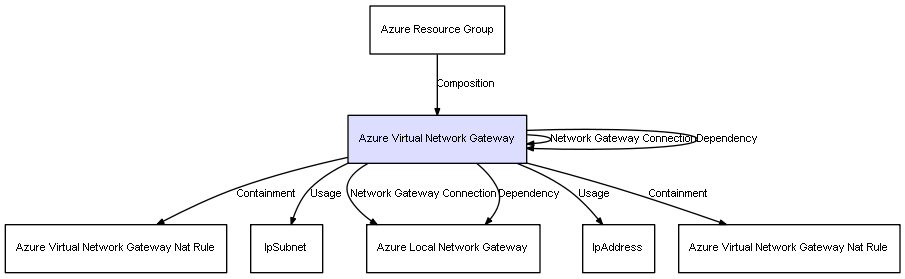

Valid direct incoming and outgoing relations defined on Azure Virtual Network Gateway
| Relations defined for Azure Virtual Network Gateway | |||
|---|---|---|---|
| From | To | Type | Description |
| Azure Virtual Network Gateway | Azure Local Network Gateway | Network Gateway Connection | [Summary] Corresponds to a Network Gateway Connection between either 2 Azure Virtual Network Gateways or an Azure Virtual Network Gateway and an Azure Local Network Gateway. Information about this network connection can be found using the Virtual Network Gateway Connections - List Rest API REF: https://docs.microsoft.com/en-us/rest/api/network-gateway/virtualnetworkgatewayconnections/list GET https://management.azure.com/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}/providers/Microsoft.Network/connections?api-version=2020-11-01 |
| Azure Virtual Network Gateway | Azure Local Network Gateway | Dependency | represents a dependency between 2 objects |
| Azure Virtual Network Gateway | Azure Virtual Network Gateway | Network Gateway Connection | [Summary] Corresponds to a Network Gateway Connection between either 2 Azure Virtual Network Gateways or an Azure Virtual Network Gateway and an Azure Local Network Gateway. Information about this network connection can be found using the Virtual Network Gateway Connections - List Rest API REF: https://docs.microsoft.com/en-us/rest/api/network-gateway/virtualnetworkgatewayconnections/list GET https://management.azure.com/subscriptions/{subscriptionId}/resourceGroups/{resourceGroupName}/providers/Microsoft.Network/connections?api-version=2020-11-01 |
| Azure Virtual Network Gateway | Azure Virtual Network Gateway | Dependency | represents a dependency between 2 objects |
| Azure Virtual Network Gateway | Azure Virtual Network Gateway Nat Rule | Containment | |
| Azure Virtual Network Gateway | Azure Virtual Network Gateway Nat Rule | Containment | |
| Azure Virtual Network Gateway | IpAddress | Usage | Monitor system Relationships |
| Azure Virtual Network Gateway | IpSubnet | Usage | Monitor system Relationships |
| Azure Resource Group | Azure Virtual Network Gateway | Composition | Represents a relation between 2 objects where one is contained within the other, and the included object can not exist without its container. Therefore, when the container is deleted, all its contained object will be automatically removed |
| Relations defined for Azure Resource | |||
| From | To | Type | Description |
| Terraform Module | Azure Resource | Containment | |
| Relations defined for Application Resource | |||
| From | To | Type | Description |
| RunningSoftware | Application Resource | Composition | Represents a relation between 2 objects where one is contained within the other, and the included object can not exist without its container. Therefore, when the container is deleted, all its contained object will be automatically removed |
| Relations defined for InfrastructureElement | |||
| From | To | Type | Description |
| BusinessActivity | InfrastructureElement | Usage | Monitor system Relationships |
| BusinessApplication | InfrastructureElement | Containment | |
| BusinessApplication | InfrastructureElement | Usage | Monitor system Relationships |
| BusinessElement | InfrastructureElement | Usage | Monitor system Relationships |
| BusinessTransaction | InfrastructureElement | Usage | Monitor system Relationships |
| CiCollection | InfrastructureElement | Usage | Monitor system Relationships |
| ClusterResourceConfig | InfrastructureElement | Dependency | represents a dependency between 2 objects |
| Service | InfrastructureElement | Containment | |
| Service | InfrastructureElement | Usage | Monitor system Relationships |
| Relations defined for ConfigurationItem | |||
| From | To | Type | Description |
| ConfigurationItem | ConfigurationItem | ConsumerProvider | |
| ConfigurationItem | Kpi | Composition | Represents a relation between 2 objects where one is contained within the other, and the included object can not exist without its container. Therefore, when the container is deleted, all its contained object will be automatically removed |
| ConfigurationItem | Outage | Composition | Represents a relation between 2 objects where one is contained within the other, and the included object can not exist without its container. Therefore, when the container is deleted, all its contained object will be automatically removed |
| ConfigurationItem | PolicyResult | Aggregation | |
| ConfigurationItem | ScheduledDowntime | Connection | |
| ConfigurationItem | ServiceConnectionPoint | Composition | Represents a relation between 2 objects where one is contained within the other, and the included object can not exist without its container. Therefore, when the container is deleted, all its contained object will be automatically removed |
| ConfigurationItem | ServiceConnectionPoint | Ownership | |
| ApplicationSystem | ConfigurationItem | Aggregation | |
| Asset | ConfigurationItem | Connection | |
| CiCollection | ConfigurationItem | Containment | |
| CiCollection | ConfigurationItem | Membership | |
| ItProcessRecord | ConfigurationItem | Connection | |
| ItProcessRecord | ConfigurationItem | Membership | |
| Location | ConfigurationItem | Membership | |
| Tenant | ConfigurationItem | Connection | |
| Relations defined for Managed Object | |||
| From | To | Type | Description |
| Managed Object | History Change | History Link | |
| Tenant | Managed Object | Connection | |

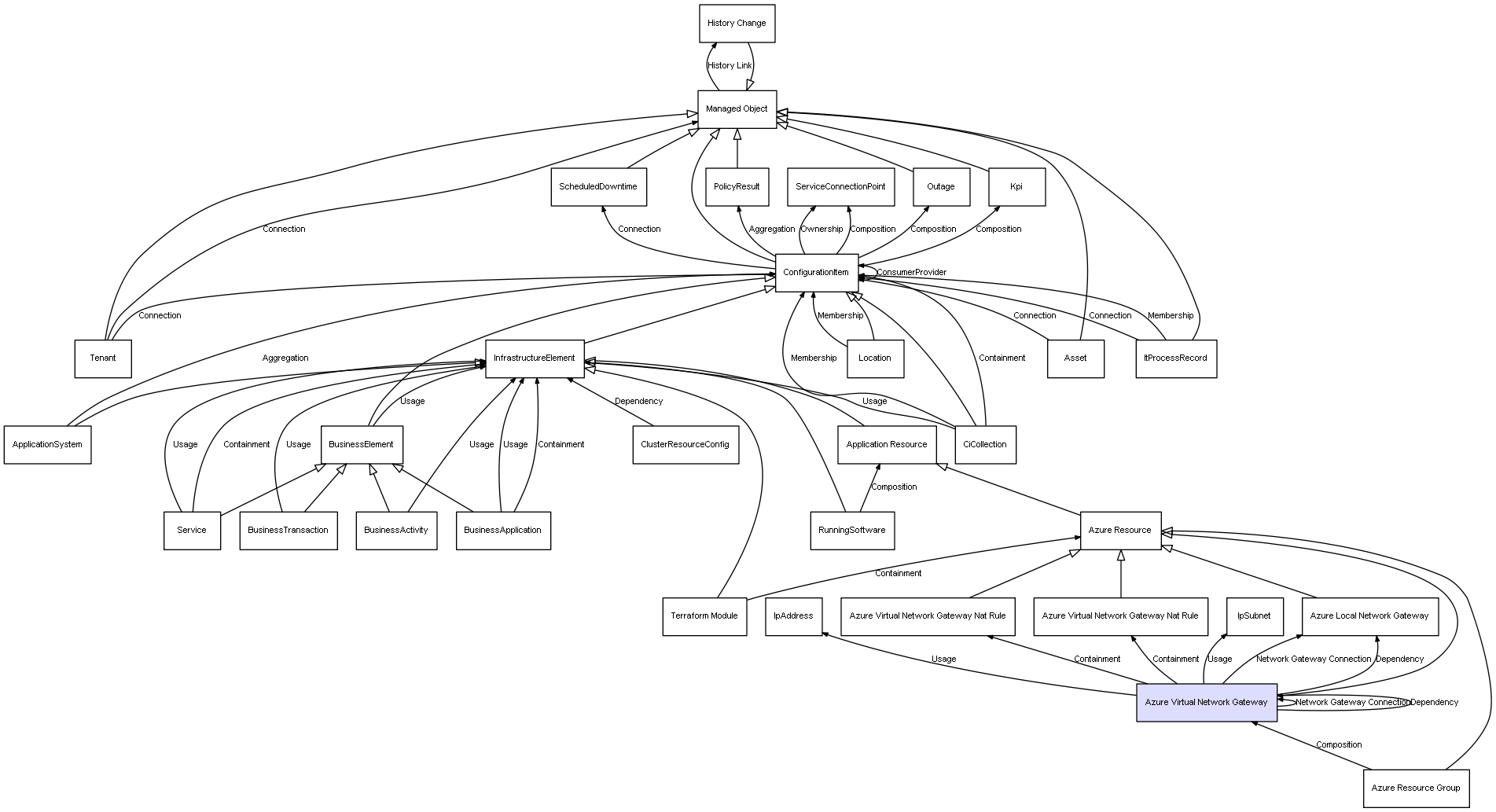

Combined inheritance and relation diagram for Azure Virtual Network Gateway
| Adapters providing CIs of type Azure Virtual Network Gateway | ||
|---|---|---|
| Adapter Name | Description | Adapter Type |
| Azure Discovery by Tags | This adapter discovers resources on an Azure tenant | Discovery |
| Azure Discovery by Tenant | This adapter discovers subscriptions, resource groups, virtual machines, networks and storage accounts on an Azure tenant | Discovery |
| Azure Event Based Discovery | Azure Event Based Discovery | Discovery |
| Azure Event Based Discovery by Tenant | Azure Event Based Discovery by Tenant | Discovery |
| Azure_Event_Discovery_by_Tags | Azure_Event_Discovery_by_Tags | Discovery |
| Azure by WebServices | This adapter discovers subscriptions, resource groups, virtual machines, networks and storage accounts on an Azure tenant | Discovery |
| Adapters providing CIs of type ConfigurationItem | ||
| Adapter Name | Description | Adapter Type |
| Import from CSV | Imports data from a CSV file into CMDB using mapping of the CSV file columns to CIT attributes. Mapping is defined by the following parameters: ciType: to define the CIT name which you want to create, mappingString: to define the mapping of the CIT attributes to the CSV file columns. Mapping file is used for more complex mapping definitions. Mapping file name is specified by 'mappingFile' parameter. | Integration |
| Import from DB | Imports data from an external database into CMDB using mapping of table columns to CIT attributes. Mapping is defined by the following parameters: ciType: to define the CIT name which you want to create, mappingString: to define the mapping of the CIT attributes to the table columns Mapping file is used for more complex mapping definitions. Mapping file name is specified by 'mappingFile' parameter. A SQL 'select' query is generated automatically and selects all columns in specified table, which defined by parameter: tableName In advanced cases you can specify custom SQL query. | Integration |
| Import from properties file | Imports data from a Properties file into CMDB, using mapping of the CSV file columns to CIT attributes This mapping is usually defined by the setting adapter parameters: ciType: to define the CIT name which you want to create, mappingString: to define the mapping of the Properties attributes to the CSV file columns In cases you need more complex mapping abilities, such as conversion of the strings contained in Properties file to the appropriate type of CMDB object's attribute, you should use the mapping XML configuration file specified by the mappingFile parameter. | Integration |
| SCCM Installed Software Integration | This adapter queries the records from SCCM database and recognizes it as install software by UD SAI | Integration |
| Import from Excel Workbook | Imports data from Excel Workbooks. Parses through multiple worksheet XLS files. Uses 'CIImports.xls' (default) file to import data. | Integration |
| Adapters providing CIs of type Object | ||
| Adapter Name | Description | Adapter Type |
| AMGenericAdapter | This adapter pushes/populates data between UCMDB and Asset Manager. Follow the Quick Start guide supplied with the AM Generic Adapter documentation before creating this integration point. | Integration |
| APM Push Adapter | This adapter pushes data from UCMDB to HP APM. Follow the APM Push Adapter documentation included in the HP UCMDB Discovery and Integration Content Guide before creating this integration point. | Integration |
| UCMDB API Population | Allows defining Reconciliation Priority for API Data In flows | Integration |
| Data Push into Atrium | Pushes CIs and relationships to BMC Atrium | Integration |
| BSM Kpi Adapter (deprecated) | Federate KPIs from BSM | Integration |
| CA CMDB | Pushes CIs and relationships to CA CMDB | Integration |
| UCMDB 10.x and later | Used for Populating and Federating data from a remote UCMDB 10.x(or later) and for Pushing to a remote UCMDB 10.x(or later) | Integration |
| UCMDB 9.x (deprecated) | Used for Populating and Federating data from a remote UCMDB 9.x server and for Pushing to a remote UCMDB 9.x | Integration |
| UCMDB History Adapter [local instance only] | Used to federated data from the UCMDB's History | Integration |
| UCMDB to SaaS | Used for Pushing CIs and Relationships from an on-premises UCMDB 2019.02(or later) to Micro Focus SaaS CMS | Integration |
| Push Adapter DB Example | Push data into Oracle \ MSSQL database | Integration |
| GenericDBAdapter | An example Adapter that uses the GDB-Framework | Integration |
| IAM UI Push Adapter (deprecated) | Push IAM Universal Inventory data into MSSQL database on-premises or on cloud-based Azure. | Integration |
| Java_Adapter_Template | Adapter Description | Integration |
| Kafka Push Adapter 2019.05 (deprecated) | Push function for Kafka Push Adapter | Integration |
| Pulsar Push Adapter | Push function for Pulsar Push Adapter | Integration |
| Push Adapter | Push Adapter | Integration |
| Remedyforce Push Integration | Remedyforce Push Integration | Integration |
| System Center Configuration Manager | Uses the GDB-Framework to Populate and Federate data from a System Center Configuration Manager. The adapter is also backward compatible with the SMS DB | Integration |
| Service Manager 9.41 | Discovery Pattern Description | Integration |
| Service Manager Enhanced Generic Adapter | Push and Populate CI data between UCMDB and Service Manager | Integration |
| ServiceNow Enhanced Generic Adapter | Push, Populate and Federation of CI data between UCMDB and ServiceNow | Integration |
| UCMDB to XML | Export data into XML from UCMDB | Integration |
© Copyright 2018 Micro Focus or one of its affiliates
