CmdbTypes Schema
shallowCompoundRelations Element
CmdbTypes Schema > ShallowCompoundRelations Complex Type : shallowCompoundRelations Element

Glossary Item Box

Description

A link between two configuration items with no specification of the type of link or of any properties
Namespace http://schemas.hp.com/ucmdb/1/types

Type

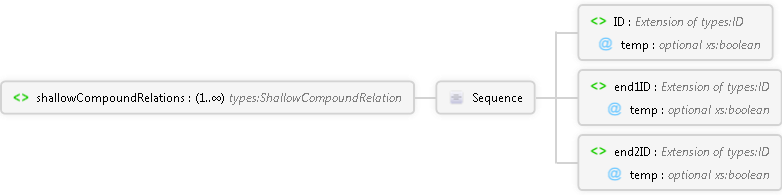

Diagram

end2ID Element end1ID Element ID Element Sequence shallowCompoundRelations Element

Overview

shallowCompoundRelations 1..∞ ShallowCompoundRelation Complex Type
A link between two configuration items with no specification of the type of link or of any properties
Sequence
ID ID Complex Type
The unique ID of the Relation
temp optional xs:boolean
If true, this is a temporary ID. If false, it is the instance's ID in the UCMDB.
end1ID ID Complex Type
The CI.ID of the base of the link
temp optional xs:boolean
If true, this is a temporary ID. If false, it is the instance's ID in the UCMDB.
end2ID ID Complex Type
The CI.ID of the target of the link
temp optional xs:boolean
If true, this is a temporary ID. If false, it is the instance's ID in the UCMDB.

Source

<xs:element name="shallowCompoundRelations" type="types:ShallowCompoundRelation" maxOccurs="unbounded" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation>
                        A link between two configuration items with no specification of the type of link or of any
                        properties
                    </xs:documentation>
  </xs:annotation>
</xs:element>
