CI Class Cost

Inheritance diagram for Cost

Summary

Display Name	Cost
Name	cost
Description	Cost is used to describe IT cost accounting with real price calculated. It provides monetary IT cost amount and properties associated with it.

Attributes

Attributes defined for Cost
Name	Display Name	Type	Default Value	Description	Factory	Key	Hidden
amount	Amount	double		This is the amount of money.	true	true	false
cost_status	CostStatus	cost_status_enum		Status of the cost.	true	false	false
cost_type	CostType	cost_type_enum		CostType is used to describe different types of cost: actual, planned and forecast.	true	true	false
currency	Currency	currency	USD	Currency is used to describe the base currency type for an IT cost amount.	true	true	false
expense_type	ExpenseType	expense_type_enum	capex	This attribute represents the expense type from a cost category perspective. This can be OPEX (operating expense) or CAPEX (capital expsense). An operating expense, operating expenditure, operational expense, operational expenditure or OPEX is an on-going cost for running a product, business, or system. Capital expenditures (CAPEX or capex) are expenditures creating future benefits.	true	false	false
incurred_date	IncurredDate	date		The date that the cost is generated.	true	false	false
is_discretionary	IsDiscretionary	boolean	true	Indicates whether an IT cost has a discretionary or non-discretionary category.	true	false	false
Attributes defined for Managed Object
Name	Display Name	Type	Default Value	Description	Factory	Key	Hidden
TenantOwner	Owner Tenant	string[32]		The Tenant Owner ID	true	false	false
TenantsUses	Consumer Tenants	string_list		The IDs of the Tenants who are associated with the CI	true	false	false
Attributes defined for Object
Name	Display Name	Type	Default Value	Description	Factory	Key	Hidden
document_list	Documents	string		Documents	true	false	true
MENU		xml			true	false	true
Attributes defined for Data
Name	Display Name	Type	Default Value	Description	Factory	Key	Hidden
~~data_adminstate~~	~~Admin State~~	adminstates_enum	0	Admin State	true	false	true
data_allow_auto_discovery	Allow CI Update	boolean[250]	true		true	false	false
~~data_changecorrstate~~	~~Change Corr State~~	changestates_enum	0	Change State	true	false	true
~~data_changeisnew~~	~~Change Is New~~	boolean	false	Change State	true	false	true
~~data_changestate~~	~~Change State~~	changestates_enum	0	Change State	true	false	true
data_externalid	External ID	string[300]		external source id: snmp index, data sources index etc.	true	false	true
data_note	Note	string[250]			true	false	false
~~data_operationcorrstate~~	~~Operation Corr State~~	operationstates_enum	0	Operation State	true	false	true
~~data_operationisnew~~	~~Operation Is New~~	boolean	false	Operation State	true	false	true
~~data_operationstate~~	~~Operation State~~	operationstates_enum	0	Operation State	true	false	true
data_origin	Origin	string[100]			true	false	false
data_source	Created By	string[512]			true	false	false
~~data_testcorrstate~~	~~Test Corr State~~	teststates_enum	0	Test State	true	false	true
~~data_testisnew~~	~~Test Is New~~	boolean	false	Test State	true	false	true
~~data_teststate~~	~~Test State~~	teststates_enum	0	Test State	true	false	true
data_updated_by	LastModifiedBy	string[512]			true	false	false
description	Description	string[1000]		Description	true	false	false
digest	Digest	string[40]			true	false	true
display_label	Display Label	string[900]		Used as calc attribute for display	true	false	false
MENU		xml			true	false	true
name	Name	string[900]			true	false	false
user_label	User Label	string[900]		Used as user label	true	false	false
Attributes defined for Root
Name	Display Name	Type	Default Value	Description	Factory	Key	Hidden
BODY_ICON		string	general		true	false	true
calculated_id	Calculated ID	bytes[16]		Calculated ID	true	false	true
create_time	Created Time	date		When was this CI created	true	false	false
FAMILY_ICON		string			true	false	true
global_id	Global Id	string[32]		A globally unique identifier for the entity represented by the object	true	false	false
global_id_scope		string	Default		true	false	true
last_discovered_by	LastDiscoveredBy	string[512]		Who discovered this CI	true	false	false
last_discovered_by_probe	LastDiscoveredByProbe	string		Which probe discovered this CI	true	false	false
last_discovered_time	LastDiscoveredTime	date		When was this CI discovered	true	false	false
last_modified_time	LastModifiedTime	date		When was this CI last updated	true	false	false
root_actualdeletetime	Actual Delete Time	date		When will this CI be deleted	true	false	true
root_actualdeletionperiod	Actual Deletion Period	integer	40	What is the period after the CI will be deleted	true	false	false
root_candidatefordeletetime	Candidate For Deletion Time	date		When will this CI be warned about deleting	true	false	true
root_class	CI Type	string[100]		Class name of the CI	true	false	true
root_container	Container	string[32]		Container CI of this CI	true	false	false
root_deletioncandidateperiod	Deletion Candidate Period	integer	20	What is the period after the CI will be candidate for delete	true	false	false
root_enableageing	Enable Aging	boolean	false	Is aging enabled	true	false	false
root_iconproperties		string[100]			true	false	true
root_iscandidatefordeletion	Is Candidate For Deletion	boolean	false	Is candidate for deletion	true	false	false
root_lastaccesstime	Last Access Time	date		When was this CI last accessed	true	false	false
~~root_system~~	~~System~~	string[2]			true	false	true

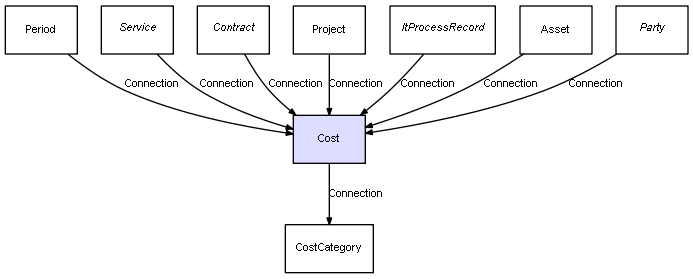

Valid Relations

Valid direct incoming and outgoing relations defined on Cost

Relations defined for Cost
From	To	Type	Description
Cost	CostCategory	Connection
Asset	Cost	Connection
Contract	Cost	Connection
ItProcessRecord	Cost	Connection
Party	Cost	Connection
Period	Cost	Connection
Project	Cost	Connection
Service	Cost	Connection
Relations defined for Managed Object
From	To	Type	Description
Managed Object	History Change	History Link
Tenant	Managed Object	Connection

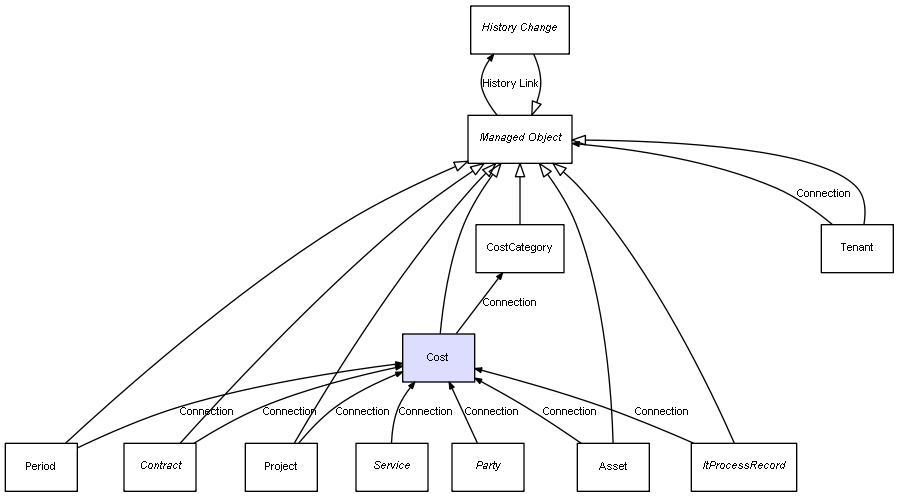

Combined inheritance and relation diagram for Cost

Potential Data Providers

Adapters providing CIs of type Object
Adapter Name	Description	Adapter Type
AMGenericAdapter	This adapter pushes/populates data between UCMDB and Asset Manager. Follow the Quick Start guide supplied with the AM Generic Adapter documentation before creating this integration point.	Integration
APM Push Adapter	This adapter pushes data from UCMDB to APM. Follow the APM Push Adapter documentation included in the UCMDB Discovery and Integration Content Guide before creating this integration point.	Integration
UCMDB API Population	Allows defining Reconciliation Priority for API Data In flows	Integration
Data Push into BMC Helix CMDB	Pushes CIs and relationships to BMC Helix CMDB	Integration
UCMDB 10.x and later	Used for Populating and Federating data from a remote UCMDB 10.x(or later) and for Pushing to a remote UCMDB 10.x(or later)	Integration
UCMDB History Adapter [local instance only]	Used to federated data from the UCMDB's History	Integration
UCMDB to SaaS	Used for Pushing CIs and Relationships from an on-premises UCMDB 2019.02(or later) to SaaS CMS	Integration
Push Adapter DB Example	Push data into Oracle \ MSSQL database	Integration
GenericDBAdapter	An example Adapter that uses the GDB-Framework	Integration
Infoblox Adapter	Integration with Infoblox Grid Manager	Integration
Java_Adapter_Template	Adapter Description	Integration
JiraSM Cloud Push Adapter	JiraSM Cloud Push Adapter	Integration
ITOM DataLake Push Adapter	Push function for ITOM DataLake Push Adapter	Integration
Pulsar Push Adapter	Push function for Pulsar Push Adapter	Integration
Push Adapter	Push Adapter	Integration
BMC Helix RemedyForce CMDB Push Integration	BMC Helix RemedyForce CMDB Push Integration	Integration
System Center Configuration Manager	Uses the GDB-Framework to Populate and Federate data from a System Center Configuration Manager. The adapter is also backward compatible with the SMS DB	Integration
Service Manager 9.41	Discovery Pattern Description	Integration
Service Manager Enhanced Generic Adapter	Push and Populate CI data between UCMDB and Service Manager	Integration
ServiceNow Enhanced Generic Adapter	Push, Populate and Federation of CI data between UCMDB and ServiceNow	Integration
UniversalDiscovery Config Adapter	Push configuration to UD from CIs in UCMDB	Integration
UCMDB to XML	Export data into XML from UCMDB	Integration
