CI Class CostCategory

Inheritance diagram for CostCategory

Summary

Display NameCostCategory
Namecost_category
DescriptionThe cost categories are a classification of expenses. Typical examples include hardware, telephone, software, etc.

Attributes

Attributes defined for CostCategory
NameDisplay NameTypeDefault ValueDescriptionFactoryKeyHidden
cost_category_codeCostCategoryCodecost_category_code_enum[250]This code identifies what sort of cost is associated with a project. Values can include such things as:Capital and Operating or be more detailed such as Software-licensing, Hardware-Server, etc. This is used to help roll up many costs.truetruefalse
expense_typeExpenseTypeexpense_type_enumThis attribute represents the expense type from a cost category perspective. This can be OPEX (operating expense) or CAPEX (capital expsense). An operating expense, operating expenditure, operational expense, operational expenditure or OPEX is an on-going cost for running a product, business, or system. Capital expenditures (CAPEX or capex) are expenditures creating future benefits.truefalsefalse
Attributes defined for Managed Object
NameDisplay NameTypeDefault ValueDescriptionFactoryKeyHidden
TenantOwnerOwner Tenantstring[32]The Tenant Owner IDtruefalsefalse
TenantsUsesConsumer Tenantsstring_listThe IDs of the Tenants who are associated with the CItruefalsefalse
Attributes defined for Object
NameDisplay NameTypeDefault ValueDescriptionFactoryKeyHidden
document_listDocumentsstringDocumentstruefalsetrue
MENUxmltruefalsetrue
Attributes defined for Data
NameDisplay NameTypeDefault ValueDescriptionFactoryKeyHidden
data_adminstateAdmin Stateadminstates_enum0Admin Statetruefalsetrue
data_allow_auto_discoveryAllow CI Updateboolean[250]truetruefalsefalse
data_changecorrstateChange Corr Statechangestates_enum0Change Statetruefalsetrue
data_changeisnewChange Is NewbooleanfalseChange Statetruefalsetrue
data_changestateChange Statechangestates_enum0Change Statetruefalsetrue
data_externalidExternal IDstring[50]external source id: snmp index, data sources index etc.truefalsetrue
data_noteNotestring[250]truefalsefalse
data_operationcorrstateOperation Corr Stateoperationstates_enum0Operation Statetruefalsetrue
data_operationisnewOperation Is NewbooleanfalseOperation Statetruefalsetrue
data_operationstateOperation Stateoperationstates_enum0Operation Statetruefalsetrue
data_originOriginstring[100]truefalsefalse
data_sourceCreated Bystring[512]truefalsefalse
data_testcorrstateTest Corr Stateteststates_enum0Test Statetruefalsetrue
data_testisnewTest Is NewbooleanfalseTest Statetruefalsetrue
data_teststateTest Stateteststates_enum0Test Statetruefalsetrue
data_updated_byUpdated Bystring[512]truefalsefalse
descriptionDescriptionstring[1000]Descriptiontruefalsefalse
digestDigeststring[40]truefalsetrue
display_labelDisplay Labelstring[900]Used as calc attribute for displaytruefalsefalse
MENUxmltruefalsetrue
nameNamestring[900]truefalsefalse
user_labelUser Labelstring[900]Used as user labeltruefalsefalse
Attributes defined for Root
NameDisplay NameTypeDefault ValueDescriptionFactoryKeyHidden
BODY_ICONstringgeneraltruefalsetrue
calculated_idCalculated IDbytes[16]Calculated IDtruefalsetrue
create_timeCreate TimedateWhen was this CI createdtruefalsefalse
FAMILY_ICONstringtruefalsetrue
global_idGlobal Idstring[32]A globally unique identifier for the entity represented by the objecttruefalsefalse
global_id_scopestringDefaulttruefalsetrue
last_modified_timeLastModifiedTimedateWhen was this CI last updatedtruefalsefalse
root_actualdeletetimeActual Delete TimedateWhen will this CI be deletedtruefalsetrue
root_actualdeletionperiodActual Deletion Periodinteger40What is the period after the CI will be deletedtruefalsefalse
root_candidatefordeletetimeCandidate For Deletion TimedateWhen will this CI be warned about deletingtruefalsetrue
root_classCI Typestring[100]Class name of the CItruefalsetrue
root_containerContainerstring[32]Container CI of this CItruefalsefalse
root_deletioncandidateperiodDeletion Candidate Periodinteger20What is the period after the CI will be candidate for deletetruefalsefalse
root_enableageingEnable AgingbooleanfalseIs aging enabledtruefalsefalse
root_iconpropertiesstring[100]truefalsetrue
root_iscandidatefordeletionIs Candidate For DeletionbooleanfalseIs candidate for deletiontruefalsefalse
root_lastaccesstimeLast Access TimedateWhen was this CI last accessedtruefalsefalse
root_systemSystemstring[2]truefalsetrue

Valid Relations

Valid direct incoming and outgoing relations defined on CostCategory

Relations defined for CostCategory
FromToTypeDescription
AssetCostCategoryConnection
BudgetCostCategoryConnection
BudgetLineCostCategoryConnection
ContractCostCategoryConnection
CostCostCategoryConnection
TimeEntryCostCategoryConnection
Relations defined for Managed Object
FromToTypeDescription
Managed ObjectHistory ChangeHistory Link
TenantManaged ObjectConnection

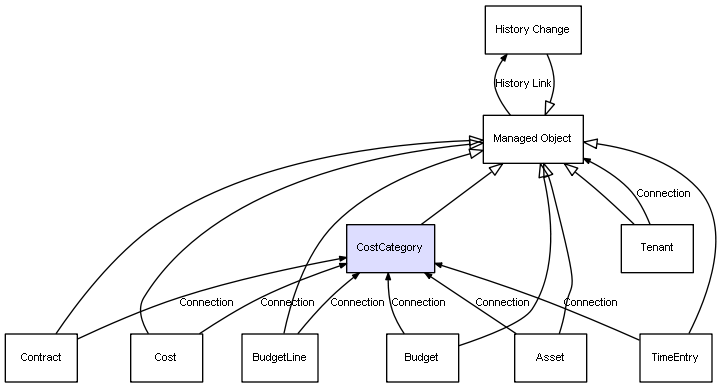

Combined inheritance and relation diagram for CostCategory

Potential Data Providers

Adapters providing CIs of type Object
Adapter NameDescriptionAdapter Type
ALMAdapterFederate defects from ALMIntegration
APM Push AdapterThis adapter pushes data from UCMDB to HP APM. Follow the APM Push Adapter documentation included in the HP UCMDB Discovery and Integration Content Guide before creating this integration point.Integration
UCMDB API PopulationAllows defining Reconciliation Priority for API Data In flowsIntegration
Data Push into AtriumPushes CIs and relationships to BMC AtriumIntegration
AutomationFlowAdapterProvide API to Operation OrchestrationIntegration
BSMKpiAdapterFederate KPIs from BSMIntegration
CM1030KpiAdapterFederate KPIs from CMIntegration
CM1030PolicyAdapterFederate Policies and their results from CMIntegration
CA CMDBPushes CIs and relationships to CA CMDBIntegration
UCMDB 10.xUsed for Populating and Federating data from a remote UCMDB 10.x server and for Pushing to a remote UCMDB 10.xIntegration
UCMDB 9.xUsed for Populating and Federating data from a remote UCMDB 9.x server and for Pushing to a remote UCMDB 9.xIntegration
UCMDB History Adapter [local instance only]Used to federated data from the UCMDB's HistoryIntegration
ConvertXMLtoOSVHDiscovery Pattern DescriptionDiscovery
Push Adapter DB ExamplePush data into Oracle \ MSSQL databaseIntegration
DDMiUses the GDB-Framework to Populate and Federate data from a DDMi databaseIntegration
EnterpriseViewAdapterFederate KPIs from Enterprise ViewIntegration
GenericDBAdapterAn example Adapter that uses the GDB-FrameworkIntegration
Java_Adapter_TemplateAdapter DescriptionIntegration
Local State Push AdapterUsed for populating data between the states of the same UCMDB ServerIntegration
Push AdapterPush AdapterIntegration
Remedyforce Push IntegrationRemedyforce Push IntegrationIntegration
Service Anywhere Push AdapterThis adapter pushes data from UCMDB to Service Anywhere. Integration
System Center Configuration ManagerUses the GDB-Framework to Populate and Federate data from a System Center Configuration Manager. The adapter is also backward compatible with the SMS DBIntegration
Service Center 6.2xUsed for Federating from ServiceCenter version 6.2xIntegration
Service Manager 7.0xUsed for Federating from ServiceManager version 7.0xIntegration
Service Manager 7.1x - 9.2xUsed for Pushing data to and Federating from ServiceManager versions 7.1x to 9.2xIntegration
Service Manager 9.41Discovery Pattern DescriptionIntegration
Service Manager 9.xxDiscovery Pattern DescriptionIntegration
Service Manager Enhanced Generic AdapterPush and Populate CI data between UCMDB and Service ManagerIntegration
Service Manager Enhanced Generic AdapterPush and Populate CI data between UCMDB and Service ManagerIntegration
ServiceNow Enhanced Generic AdapterPush, Populate and Federation of CI data between UCMDB and ServiceNowIntegration
Service-Now PushAdapter to push data from uCMDB to Service-Now.comIntegration
Data Push into TrouxPush CIs to TrouxIntegration
Executive ScorecardDiscovery Pattern DescriptionIntegration
UCMDB to XMLExport data into XML from UCMDBIntegration
