ImpactTypes Schema
impactRelation Element
ImpactTypes Schema > ImpactRelations Complex Type : impactRelation Element

Glossary Item Box

Description

A link between two items specifying that a change in one impacts the other
Namespace http://schemas.hp.com/ucmdb/1/types/impact

Type

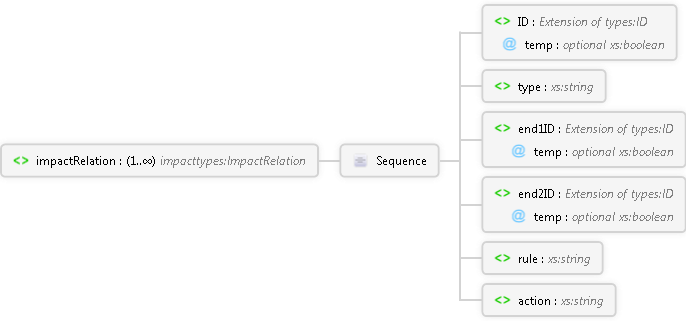

Diagram

action Element rule Element end2ID Element end1ID Element type Element ID Element Sequence impactRelation Element

Overview

impactRelation 1..∞ ImpactRelation Complex Type
A link between two items specifying that a change in one impacts the other
Sequence
ID ID Complex Type
The ID of the link
temp optional xs:boolean
If true, this is a temporary ID. If false, it is the instance's ID in the UCMDB.
type xs:string
The type of the relation
end1ID ID Complex Type
The CI ID of the item at the start of the link
temp optional xs:boolean
If true, this is a temporary ID. If false, it is the instance's ID in the UCMDB.
end2ID ID Complex Type
The CI ID of the target item of the link
temp optional xs:boolean
If true, this is a temporary ID. If false, it is the instance's ID in the UCMDB.
rule xs:string
The name of the impact rule that is activated by this relation
action xs:string
The action that triggers the impact rule

Source

<xs:element name="impactRelation" type="impacttypes:ImpactRelation" maxOccurs="unbounded" xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:annotation>
    <xs:documentation>
          A link between two items specifying that a change in one impacts the other
          </xs:documentation>
  </xs:annotation>
</xs:element>
