Sizing Reference for CMS UI

This section contains CMS UI performance test result, which might be a helpful reference when you determine the required system resources of the CMS UI in different scenarios with satisfactory performance.

CMS UI performance test result summary

The CMS UI performance test shows the following results:

  • Use cases without reports

    500 concurrent users are supported with good performance per each CMS UI and UCMDB server combination on enterprise deployment configuration. The average transaction response time is less than 5 seconds.

  • Use cases with reports

    • 500 concurrent users are supported with acceptable performance per each CMS UI and UCMDB server combination on enterprise deployment configuration.
    • Reports are no longer limited to 30,000 CIs.
    • Reports can display in a reasonable response time (< 5 seconds for reports with 1 million CIs)

    • The response time for exporting reports is dependent on report size

      Exporting 260,000 running software CIs to CSV takes about 2 minutes. This is expected and acceptable since this scenario is asynchronous, and it needs to generate and download a CSV file of 26 MB in size, which typically consumes network/file IO.

      Exporting 2,600,000 CIs to CSV (file size 270 MB) takes about 14 minutes.

Note

  • During the CMS UI performance test:

    • No discovery jobs are running
    • No integration jobs are running
    • Multi-tenant is not enabled
  • When planning or sizing your resources for CMS UI, note that the CMS UI performance in your environment may vary with your machine configuration, network environment, and data volume.

The following sections provide more details about software and hardware configuration used in the CMS UI performance test environment.

Test Environment

Software Configuration

Item Value
UCMDB Server
  • Version 2018.08
  • JVM Max Memory: 32 GB

  • Infrastructure Settings:

    Maximum number of elements (nodes) in view result: 300,000 (default: 100,000)

    Maximum number of elements (nodes) in TQL result for view: 300,000 (default: 30,000)

  • JMX settings

    com.mercury.topaz.cmdb.server.tql.manager.impl.TqlResultUtilsManagerFactory=100

    com.mercury.topaz.cmdb.server.model.manager.impl.ModelQueryManagerFactory=100

    jetty.maxThreads=1500

    jetty.maxQueued=2000

    dynamic.semaphores.enabled=true
Data Volume 25 million CIs and CI links

CMS UI

  • Version 2018.08 (standalone), with out of the box (OOTB) dashboard reports (as shown in the screenshot below)

  • CMS UI configuration

    maxThreads="1500"

  • CRSF filter disabled
  • DOS filter disabled

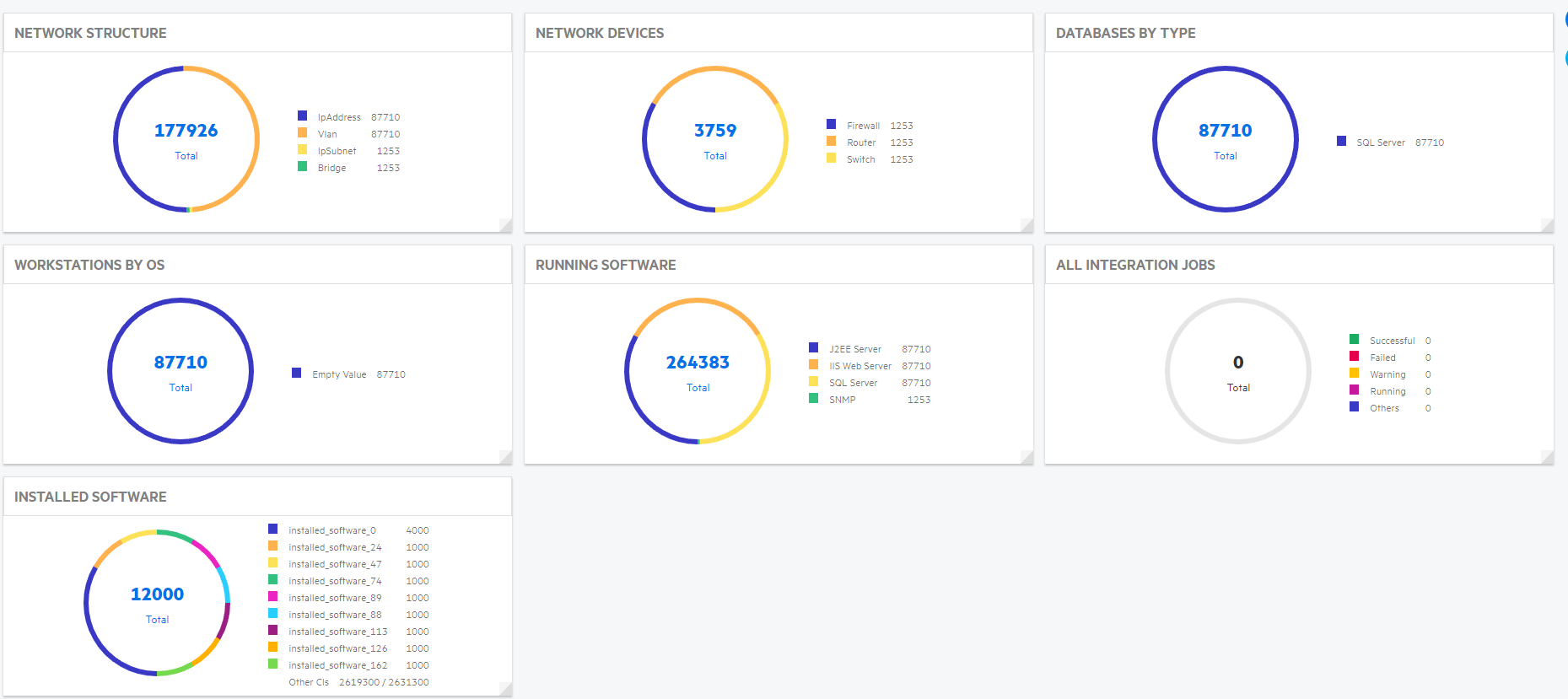

OOTB CMS UI Dashboard Reports

Hardware Configuration for Testing Machines

Role OS Disk Space CPU RAM
UCMDB Server Windows Server 2008 R2, 64-bit 100 GB 2x12 2.93GHz 96 GB *
Oracle Database Server Windows Server 2012 R2, 64-bit 1.3 TB 2x16 2.40Ghz 128 GB
LoadRunner Windows Server 2008 R2, 64-bit 120 GB 2x4 2.60Ghz 16 GB

CMS UI server (standalone)

Windows Server 2008 R2, 64-bit

1 TB

2x8 2.40GHz

128 GB

* 96 GB indicates the memory available on the machine. Only 32 GB memory is assigned to UCMDB server.

500 Concurrent Users - Average Transaction Response Time (without reports)

Transaction Minimum (seconds) Average (seconds) Maximum (seconds) Std. Deviation
Load Dashboard 0.87 1.853 8.885 1.384
login 0.581 0.871 4.389 0.421
Logout 0.265 0.347 4.568 0.241
open legacy ucmdb browser 0.039 0.233 6.45 0.537
open ucmdb browser 0.059 0.692 3.386 0.873
search nt 1.324 2.478 26.921 1.42
view ci details 1.353 2.6 23.065 1.403

500 Concurrent Users - Average Transaction Response Time (with reports)

Transaction Minimum (seconds) Average (seconds) Maximum (seconds) Std. Deviation
General transactions
Load Dashboard 0.919 5.008 41.553 5.316
login 0.3 1.188 12.129 1.795
Logout 0.222 0.588 15.881 1.009
open legacy ucmdb browser 0.024 0.833 21.47 2.823
open ucmdb browser 0.03 0.943 14.559 2.01
search nt 0.514 6.94 51.03 9.161
view ci details 0.302 3.359 37.36 5.083
Reports related transactions
Search databases by type Report 0.185 2.435 35.343 4.46
Open Databases by Type Report 0.347 2.672 27.998 4.291
Open Running Software Report 0.806 3.728 27.264 5.18
Search running software Report 0.475 3.801 37.082 5.333
Search installed software Report 14.066 27.325 59.256 10.391
Export Databases by Type Report XML 22.221 30.565 57.148 6.869
Open Installed Software Report 37.634 51.368 60.745 7.161
Export Databases by Type Report CSV 33.458 52.704 95.191 15.489
Export Databases by Type Report XLS 43.845 62.535 108.497 16.618
Export Databases by Type Report XLSX 44.62 65.469 108.702 17.639
Export Databases by Type Report PDF 43.601 74.418 130.879 21.419
Export Running Software Report XML 84.364 112.926 154.873 18.272
Export Running Software Report CSV 112.627 142.97 183.745 20.42
Export Running Software Report PDF 144.164 179.979 229.01 28.355
Export Running Software Report XLS 139.835 181.127 274.823 38.416
Export Running Software Report XLSX 132.236 186.219 224.064 29.427
Export Installed Software Report CSV 780.496 855.559 930.622 75.063
Export Installed Software Report XLSX 1080.406 1137.104 1193.802 56.698

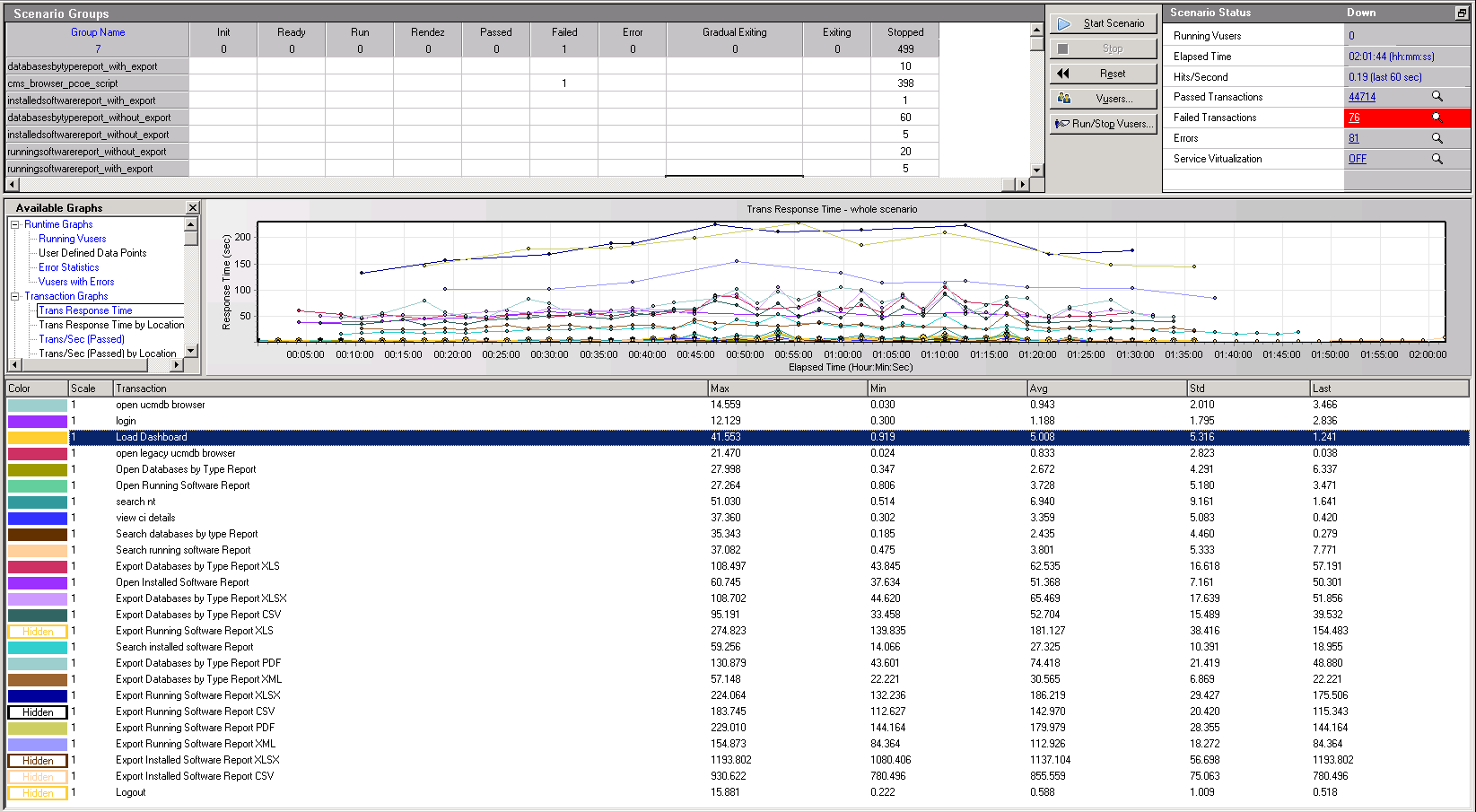

The screenshot below shows LoadRunner transaction response time:
