Searching the Help
To search for information in the Help, type a word or phrase in the Search box. When you enter a group of words, OR is inferred. You can use Boolean operators to refine your search.
Results returned are case insensitive. However, results ranking takes case into account and assigns higher scores to case matches. Therefore, a search for "cats" followed by a search for "Cats" would return the same number of Help topics, but the order in which the topics are listed would be different.
Search for | Example | Results |
---|---|---|
A single word | cat
|
Topics that contain the word "cat". You will also find its grammatical variations, such as "cats". |
A phrase. You can specify that the search results contain a specific phrase. |
"cat food" (quotation marks) |
Topics that contain the literal phrase "cat food" and all its grammatical variations. Without the quotation marks, the query is equivalent to specifying an OR operator, which finds topics with one of the individual words instead of the phrase. |
Search for | Operator | Example |
---|---|---|
Two or more words in the same topic |
|
|
Either word in a topic |
|
|
Topics that do not contain a specific word or phrase |
|
|
Topics that contain one string and do not contain another | ^ (caret) |
cat ^ mouse
|
A combination of search types | ( ) parentheses |
|
Filtering
The Filtering section defines filter rules applied to discovered clients and servers.
Note A host is filtered if at least one of the filters is applied to it.
The filter types are:

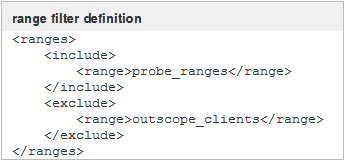

The Range filter performs filtering on a per-IP-range basis.
Example:
Ranges that must be included in the final reporting topology should be defined in the <include> tag. Ranges that must be excluded should be defined in <exclude> tag. The following keywords should be used to define specific ranges:
Keyword | Description |
---|---|
probe_ranges |
Includes all ranges defined using the Protocol Manager. |
outscope_clients |
Includes all client IPs that are out of Probe range scope. |
outscope_servers |
Includes all server IPs that are out of Probe range scope. |
ddm_related_connections |
Includes the Probe IP. Allows user to filter DFM-related connections initiated during the discovery process. |
The Service filter performs filtering of discovered servers according to the specified list of services. Mapping between service name and relevant port is done according to definitions in the portNumberToPortName.xml file.
Example:
Services that must be included in final reporting topology are defined in <include> tag. Services that must be excluded are defined in <exclude> tag. When the service name value is "*" (asterisk), all servers found.
Note A service can be deactivated if its active attribute is set to false or the tag responsible for the service is commented out or removed.
