JEE WebSphere Connections by JMX Job

Node Conditions

Parameters are not overridden by default and use values from the adapter.

This adapter is used for WebSphere Server discovery.

• Input CIT: IpAddress

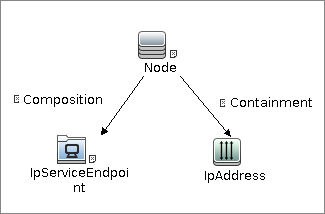

• Input Query:



• Triggered CI Data

  Name	Value
  ip_address	${SOURCE.name}
  ip_domain	${SOURCE.routing_domain}
  ports	${SERVICE_ADDRESS.network_port_number:NA}
  hostId	${HOST.root_id}
  ip_dnsname	${SOURCE.authoritative_dns_name:NA}

• Used Scripts

  • connection.py

  • db.py

  • db_builder.py

  • db_platform.py

  • entity.py

  • iteratortools.py

  • jdbc.py

  • jdbc_url_parser.py

  • jee.py

  • jee_connection.py

  • jee_discoverer.py

  • jms.py

  • jmx.py

  • JMX_J2EE_WebSphere_Connection.py

  • protocol.py

  • websphere.py

• Global Configuration File: None

• Parameters

  Name	Value	Description
  remoteJVMArgs	-Xms64m -Xmx256m -XX:PermSize=256m -XX:MaxPermSize=256m	JVM parameters that should be passed to the remote process.
  runInSeparateProcess	true	Determines whether the pattern runs in a separate thread.
  trustAllSSLCertificates	false	Determines whether to trust all SSL certificates if the WebSphere server does not have a valid one.

• Composition

• IpAddress

• IpServiceEndpoint

• J2EE Domain

• JEE Node
• JVM

• Node

• Usage

• Websphere AS
