Universal DiscoveryContent Pack 26.00 (CP26)

EMC Control Center (ECC) Integration

Integrate > Third Party Integrations > EMC Control Center (ECC) Integration > Reports

Reports

The Storage_Basic package contains basic reports that can be customized to suit the integrated ECC applications.

In addition to the system reports, Change Monitoring and Asset Data parameters are set on each CIT in this package, to enable Change and Asset Reports in UCMDB.

To access the Storage_Basic package: Administration > Package Manager. For details, see "Package Manager" in the Universal CMDB Administration section of the UCMDB Online Help.

This section includes:

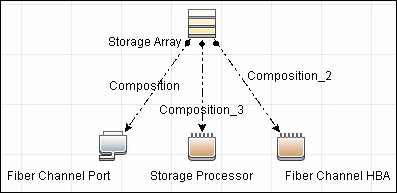

Storage Array Configuration

This report shows detailed information on Storage Arrays and its sub-components including Fibre Channel Ports, Fibre Channel Arrays, and Storage Processors. The report lists Storage Arrays with sub-components as children of the Array.

Host Configuration

This report shows detailed information on hosts that contain one or more Fibre Channel HBAs, Fibre Channel Ports, or Logical volumes. The report lists hosts with sub-components as children of the host.

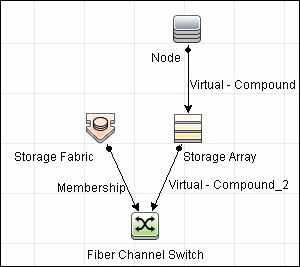

Storage Array Dependency

This report maps dependencies on a Storage Array. The report also displays information on switches connected to it.

Note Although shown in the preceding graphic, the ECC job does not discover Storage Fabrics. The report represented by this query is populated without Storage Fabrics.

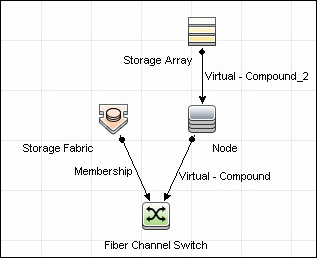

Host Storage Dependency

This report shows detailed information on storage infrastructure dependencies of a Host. The report lists hosts and dependent components.

Note Although shown in the preceding graphic, the ECC job does not discover Storage Fabrics. The report represented by this query is populated without Storage Fabrics.
