Configuration Management System (CMS)2018.05

Use > Modeling > Modeling > Reports > Reports User Interface > Application License Report

Application License Report

This report displays all the application instances detected in the system that require a license.

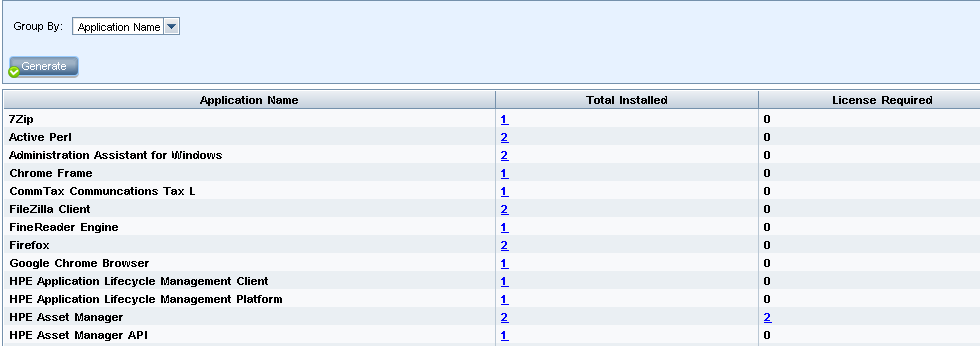

Report Example	Click thumbnail to view full size image.
To access	Select Managers > Modeling > Reports. In the Custom Reports pane, do one of the following: Click the Create New Report button and select Application License Report. Under Inventory: Double-click Application License Report. Right-click Application License Report and select Create New Report. Select Application License Report, and drag it onto the right pane.
Important information	The top level of the report displays the number of application instances for each application, vendor, or related node, depending on the grouping option selected. This is based on the license type for each application as defined in the SAI files. In any layer, you can use the Select Columns button to select the attributes to display in the report.
Relevant tasks	How to Generate a Custom Report

User interface elements are described below (unlabeled elements are shown in angle brackets):

UI Element (A-Z)	Description
<Breadcrumbs>	Displays the levels through which you have navigated to get to the current level. Appears horizontally across the top of the chart. Note Each level in the list of breadcrumbs is a clickable link.
<Shortcut Menu>	Right-click a CI in the report to access the IT Universe Manager shortcut menu. For details, see IT Universe Manager Shortcut Menu.
<Toolbar>	For details, see Report Toolbar Options.
Group By	Select the method for displaying the data. The available options are: Application Name Vendor Name Related Node
License Required	For each application, vendor, or related node, displays the number of applications that require a license. Click the number to drill down and view the application instances. On the drill down screen, if the number in the Components column is greater than 0, then the selected application has licensing components.
