Configuration Management System (CMS)2018.05

Use > Modeling > Modeling > Reports > Reports User Interface > Scan File Status Report

Scan File Status Report

This report displays the scan files generated by the Inventory Discovery by Scanner discovery job.

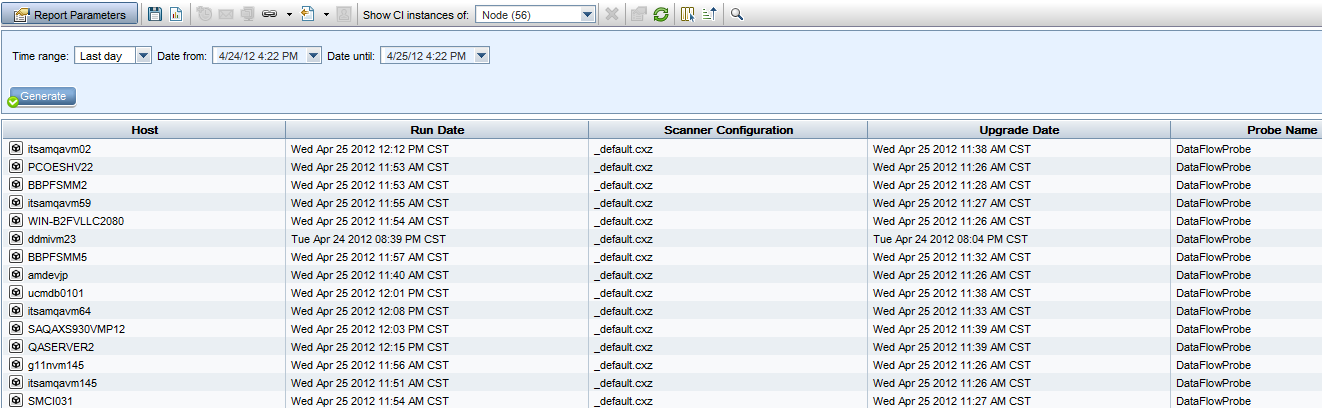

Report Example	Click thumbnail to view full size image.
To access	Select Managers > Modeling > Reports. In the Custom Reports pane, do one of the following: Click the Create New Report button and select Scan File Status Report. Under Discovery Status: Double-click Scan File Status Report. Right-click Scan File Status Report and select Create New Report. Select Scan File Status Report, and drag it onto the right pane.
Important information	The Host column indicates the node on which the scan file is generated. The Run Date and Upgrade Date columns display the latest run and upgrade times for the scanner . The Scanner Configuration and Probe Name columns display the configuration file and data flow probe gateway last used by the scanner. There is a hidden column called Scan File Path, which displays the full path of the scan file stored on the Data Flow Probe. To display this column, add it to the visible columns manually using the Select Columns button every time a new report is generated. You can download the selected scan file to the local machine by right-clicking a scan file and selecting Download Scan File from the context menu. If the Inventory Tools are installed on the computer, when you open the downloaded scan file, the Viewer application is launched to display the contents of the scan file. For more information, see Inventory Tools. Right-click a scan and select View Communication Log to display the scanner log for debug information. This option is only available when the scan did not finish successfully.
Relevant tasks	How to Generate a Custom Report

User interface elements are described below (unlabeled elements are shown in angle brackets):

UI Element (A-Z)	Description
<Shortcut Menu>	Right-click a CI in the report to access the IT Universe Manager shortcut menu. For details, see IT Universe Manager Shortcut Menu.
<Toolbar>	For details, see Report Toolbar Options.
Date from	Configure a start date and time for the report.
Date until	Configure an end date and time for the report.
Time range	Select a time frame over which to display the scan files. The system automatically provides the starting and ending dates in the Date from and Date until boxes. Note If you select Custom, you can manually configure a starting and ending date in the Date from and Date until boxes.
