Operations Manager i10.62

Federation Workflow with UCMDB

This workflow provides a brief overview of the steps to be performed in UCMDB, in order to consume federated data from Configuration Manager.

Create an integration point to federate policy compliance data

In UCMDB, enter the Data Flow Management module.
Click to create a new integration point.

Set the following adapter properties:

UI Element (A-Z)	Description
Adapter	Click and select CM New Policy Adapter. Note Previously created integration points that use the CM Policy Adapter must be deleted, as the installer creates an integration point for federating data using the CM New Policy Adapter. If for some reason the new integration point for federation is not created by the installer (possibly due to a UCMDB Integration Server issue), you will need to manually create it. Note: Previously created integration points that use the CM Policy Adapter should be updated to use the CM New Policy Adapter. In addition, you will need to specify the relevant properties for the new adapter when you update the integration point.
Additional Probes	Enables you to select additional probes over which to run the integration. Click to select the additional probes. When the integration runs, if additional Data Flow Probes are defined, the server uses the most available Probe.
Configuration Manager Application URL	Provide the URL of the Configuration Manager server. Note If you have changed the root context from http://<IP address>:<port>//cnc to http://<IP address>:<port>/<context>/cnc, you must specify a the URL includes this root context when configuring the integration point.
Credentials ID	Do the following: Click . Select Generic Protocol and click OK. Click to add the credentials to connect to Configuration Manager. Enter credentials for the user who has Manage, Authorize,Views Administration and Access to UI permissions. When finished, click OK
Data Flow Probe	The name of the Data Flow Probe used to run the integration job.
Integration Description	Enter a description for the new integration point.
Integration Name	Enter a name for the new integration point. Note The name may not exceed 45 characters.
Is Integration Activated	Select this check box to create an active integration point. Clear the check box to deactivate an integration, for example, to set up an integration point without actually connecting to a remote machine. Note New integration points are set as inactive by default.

Click Test Connection to make sure that you have configured the integration point correctly. If the test fails, see Troubleshooting and Limitations
Click OK to save the integration point.
Select the Policy and PolicyResults CI types in the Supported and Selected CI Types tree.
Click to save the integration point.

For further details about creating integration points, see the section about the Integration Studio in the HPE Universal CMDB Data Flow Management Guide.

Create an integration point to federate KPI data

In UCMDB, enter the Data Flow Management module.
Click to create a new integration point.

Set the following adapter properties:

UI Element (A-Z)	Description
Adapter	Click and select CM KPI Adapter.
Additional Probes	Enables you to select additional probes over which to run the integration. Click to select the additional probes. When the integration runs, if additional Data Flow Probes are defined, the server uses the most available Probe.
Configuration Manager Application URL	Provide the URL of the Configuration Manager server. Note If you have changed the root context from http://<IP address>:<port>//cnc to http://<IP address>:<port>/<context>/cnc, you must specify a the URL includes this root context when configuring the integration point.
Credentials ID	Do the following: Click . Select Generic Protocol and click OK. Click to add the credentials to connect to Configuration Manager. Enter credentials for the user who has Manage, Authorize,Views Administration and Access to UI permissions. When finished, click OK
Data Flow Probe	The name of the Data Flow Probe used to run the integration job.
Integration Description	Enter a description for the new integration point.
Integration Name	Enter a name for the new integration point.
Is Integration Activated	Select this check box to create an active integration point. Clear the check box to deactivate an integration, for example, to set up an integration point without actually connecting to a remote machine. Note New integration points are set as inactive by default.

Click Test Connection to make sure that you have configured the integration point correctly.
Click OK to save the integration point.
Select the KPI and KPIObjective CI types in the Supported and Selected CI Types tree.
Click to save the integration point.

For further details about creating integration points, see the section about the Integration Studio in the HPE Universal CMDB Data Flow Management Guide.

Create policy reports based on the CIs in a view or a custom TQL query

Create an integration point as described in Create an integration point to federate policy compliance data, if one does not already exist.
In UCMDB, create a new view with a custom TQL query, or copy an existing view.

Note When using a custom TQL query, make sure you take into account the limitations of the data capacity when using federation. You should filter the CIs in the TQL query to take this limitation into account. For details, see Troubleshooting and Limitations
For each configuration item that you want to associate with a policy, attach the Policy CI type and the selected CI to the PolicyResult CI type, using composition and aggregation links accordingly. The cardinality should be 0..* if you also want to obtain results for CIs that do not have associated policy information. An example is shown below.
Specify the Configuration Manager integration point that you defined to be the data source that provides the policy and policy result data.
Set the hierarchy. An example is shown below.
Add properties for the Policy CI type to the report layout: An example is shown below.
Add properties for the PolicyResult CI type to the report layout. An example is shown below.
If desired, you can schedule these reports to be created periodically. For details, see the HPE Universal CMDB Data Flow Management Guide.

For details about creating reports, see the section about reports in the HPE Universal CMDB Modeling Guide.

Create summary policy reports based on the CIs in a view or a custom TQL query

Create an integration point as described in Create an integration point to federate policy compliance data, if one does not already exist.
In UCMDB, create a new view or copy an existing view.

Note When using a custom TQL query, make sure you take into account the limitations of the data capacity when using federation. You should filter the CIs in the TQL query to take this limitation into account. For details, see Troubleshooting and Limitations.
For each configuration item that you want to associate with a policy, attach the Policy CI type and the selected CI to the PolicyResult CI type, using composition and aggregation links accordingly. The cardinality should be 0..* if you also want to obtain results for CIs that do not have associated policy information. An example is shown below.
Specify the Configuration Manager integration point that you defined to be the data source that provides the policy and policy result data.
Set the hierarchy. An example is shown below.
Create an aggregation function for the Policy CI type. An example is shown below.
Add properties for the Policy CI type to the report layout. An example is shown below.
Add properties for the ConfigurationItem CI type to the report layout. An example is shown below.
Change the report format to a bar chart. An example is shown below.
If desired, you can schedule these reports to be created periodically. For details, see HPE Universal CMDB Data Flow Management Guide.

For details about creating reports, see the section about reports in the HPE Universal CMDB Modeling Guide.

Create KPI reports

You can create KPI reports based on the CIs in a view, a custom TQL query, or business services.

Create an integration point as described in Create an integration point to federate policy compliance data, if one does not already exist.
In UCMDB, create a new view based on a custom TQL or copy an existing view.

Note When using a custom TQL query, make sure you take into account the limitations of the data capacity when using federation. You should filter the CIs in the TQL query to take this limitation into account. For details, see Troubleshooting and Limitations.
For each configuration item that you want to associate with a policy, attach the selected CI to the Kpi CI type and the Kpi CI type to the KpiObjective CI type, using composition links. The cardinality should be 0..* if you also want to obtain results for CIs that do not have associated KPI information.

Note If you want to create a business services report, select the BusinessService CI type when creating the TQL query.
Specify the Configuration Manager integration point that you defined to be the data source that provides the policy and policy result data.
Set the hierarchy. An example is shown below.
Add properties for the KpiObjective CI type to the report layout: An example is shown below.
If desired, you can schedule these reports to be created periodically. For details, see the HPE Universal CMDB Data Flow Management Guide.

For details about creating reports, see the section about reports in the HPE Universal CMDB Modeling Guide.

Consume the KPIs in HPE Business Service Management

Ensure that you have done the following:
- The CM KPI integration point has been configured in UCMDB and is working properly.
- BSM version 9.10 or later is installed, and DDM is activated and configured to work with BSM.
In BSM, navigate to Administration > RTSM administration > Data Flow Management > Integration Studio.
Edit the CMS to RTSM integration point. Set the required UCMDB settings (host, IP address, credentials, and probe settings).
Click Test connection and then click Apply.
In the Population tab, activate all the relevant integration jobs.
In the Federation tab, select KPI and KPI Objective, and click to save the changes.

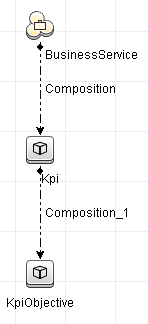

To verify that KPI data from Configuration Manager is retrieved by BSM, create and run a TQL query in RTSM. An example is shown below.

You must select a CI type that is synced and set the data source of the Kpi and KpiObjective CI types to CMS to RTSM.
