Service Manager9.50

Use > Service Manager Reports > My reports > Report types and settings > Chart > Pie

Chart > Pie

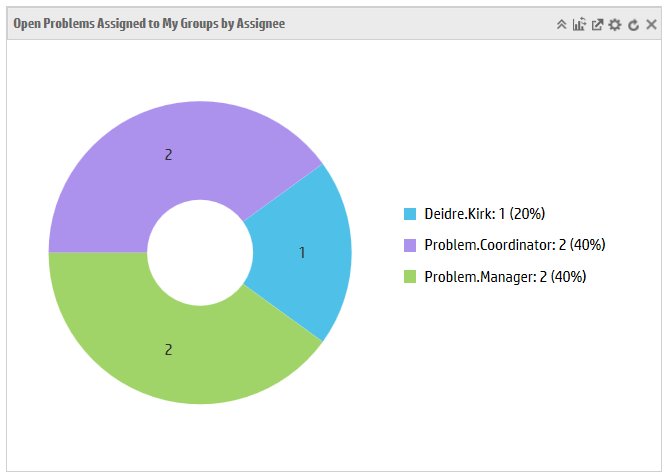

Here are the pie setting preferences and example for your reference.

Tab	Fields	Description
Chart Properties	Type of chart	Shows the current chart type. You can change it by selecting the chart type from the drop-down list.
	Chart by	Shows the query type for the report. The default value is Aggregate query.
	Group by field	Shows the field that the records are grouped by in the report. For example, one report might show the number of Incidents by customer; another report might show the number of Incidents by priority. You can select multiple level fields by clicking the Multi Level Field icon. If you choose a field of date or time, you need to choose a calculator.
	Metrics	Shows the data aggregation method. Pie supports two aggregation types: sum and count. Note When you select the count aggregation type, the aggregation value field is invisible. When you select the sum aggregation type, you can select the aggregation value from the drop-down list.
	Query	Shows the query content for the current report. You can click the Query Builder to define the query to display desired information. You can also write a new query directly. For more information about how to edit a query, see Build the query strings and other related topics.
Advanced settings	Decimal Places	Specifies the number of decimal places at which the report calculates the record percentage. Service Manager provides up to five decimal places.
	Show Legend	Specifies the legend location in the report. No legend is displayed when None is selected.
	Show Records	Specifies the permitted maximum number of records displayed in a report, ordered by the legend or the top N.
	Donut	Specifies the donut space in the pie chart. A complete pie is displayed when None is selected.
	Support Top N	If this option is selected, the report displays the top number records as defined in the Show Records field.
	Drill Down Process	Specifies whether clicking a record in the report will drill down to the record stored in the ToDo table or to the record details page. For example, the settings to the To-Do Drill Down option takes effect only for the ToDo report category. When this option is left empty (default): drill down to the record stored in the ToDo table When this option is set to To-Do Drill Down: drill down to the record details page.
