Chart > Stacked Vertical bar

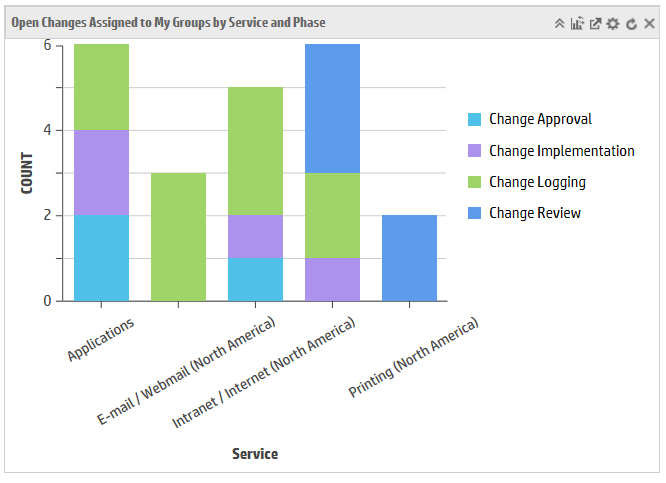

Here are the stacked vertical bar setting preferences and example for your reference.

Tab Fields Description
Chart Properties Type of chart Shows the current chart type. You can change it by selecting the chart type from the drop-down list.
Chart by Shows the query type for the report. The default value is Aggregate query.
Group by field

Shows the field that the records are grouped by in the report. For example, one report might show the number of Incidents by customer; another report might show the number of Incidents by priority.

You can select multiple level fields by clicking the Multi Level Field icon. If you choose a field of date or time, you need to choose a calculator. And if the two group by fields are both date and time field, they should be the same one.

Stacked field Shows the field that the records are stacked by in the report. You can select multiple level fields by clicking the Multi Level Field icon.
Metrics

Shows the data aggregation method. Stacked vertical bar supports five aggregation types: sum, count, average, max, and min.

Note When you select the count aggregation type, the aggregation value field is invisible. When you select the sum, average, max, or min aggregation types, you can select the aggregation value from the drop-down list.

Query Shows the query content for the current report. You can click the Query Builder to define the query to display desired information. You can also write a new query directly. For more information about how to edit a query, see Build the query strings and other related topics.
Advanced settings Decimal Places Specifies the number of decimal places at which the report calculates the record percentage. Service Manager provides up to five decimal places.
Show Legend Specifies the legend location in the report. No legend is displayed when None is selected.
Show Records Specifies the permitted maximum number of records displayed in a report.
Drill Down Process

Specifies whether clicking a record in the report will drill down to the record stored in the ToDo table or to the record details page. For example, the settings to the To-Do Drill Down option takes effect only for the ToDo report category.

  • When this option is left empty (default): drill down to the record stored in the ToDo table
  • When this option is set to To-Do Drill Down: drill down to the record details page.
